BG-150

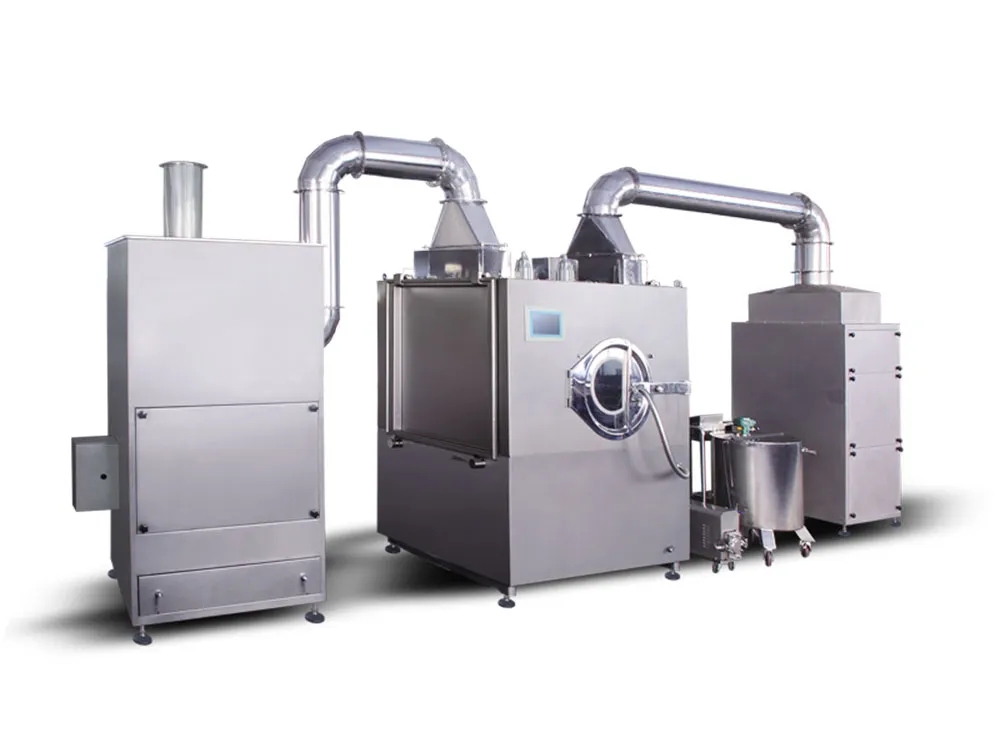

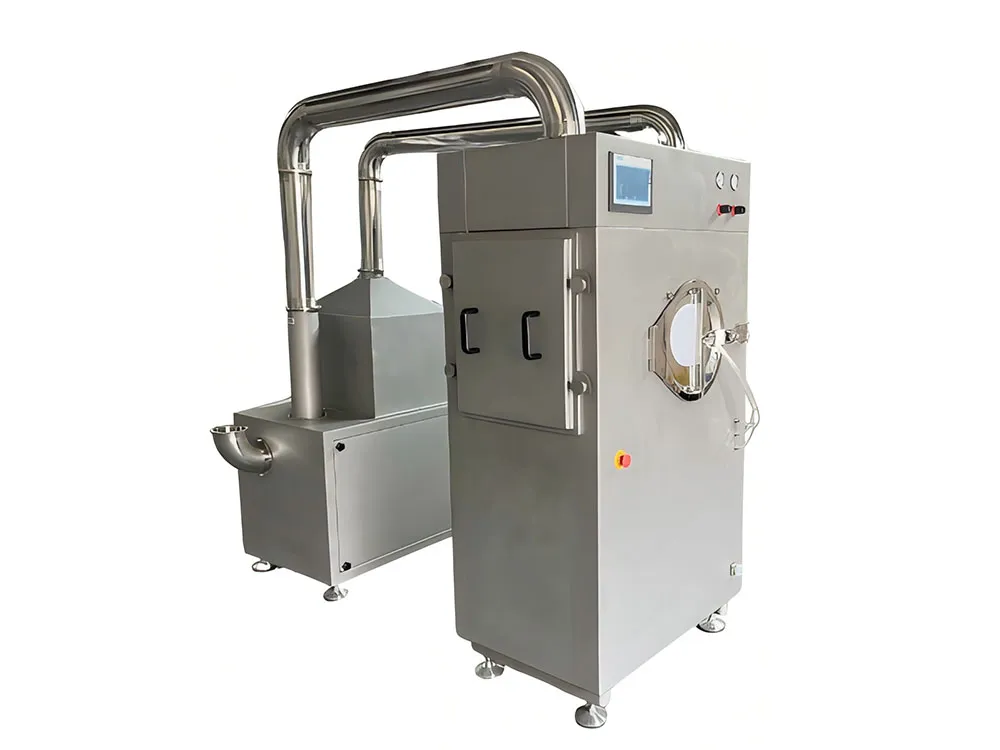

Film Coating Machine
- 150 Kilograms Per Batch
- 1200 mm Coating Pan Diameter
Our film coating machine efficiently and evenly applies a durable protective layer to tablets, pills, and bubble gum, enhancing their appearance and stability. Thanks to the intelligent control system, temperature and negative pressure adjustments can be easily managed with a touchscreen, ensuring consistent coating across different products. Its low-noise operation and eco-friendly design provide a comfortable production environment while reducing energy consumption, helping businesses lower operational costs.
- Delivers high production efficiency with reduced energy consumption, making it ideal for large-scale production
- Suitable for organic film, water-soluble film, and sugar coating of tablets, pills, and bubble gum
- Equipped with a microcomputer PLC system for automatic adjustment of temperature and negative pressure, ensuring consistent product quality
- Operates in a negative pressure environment to reduce dust and contamination, with low noise levels (≤70 dB) for a quieter workspace
- Supports recording and printing of production parameters, enhancing transparency and production management
| Model | BG-150 | |
| Production Capacity | 150kg/batch | |
| Coating Pan Speed | 2-18rpm | |
| Machine Dimensions (L×W×H) | 1600×1260×2300mm | |
| Coating Pan Diameter | Ø1200mm | |
| Main Motor Power | 2.2kW | |
| Hot Air Cabinet Motor Power | 1.5kW | |
| Exhaust Cabinet Motor Power | 5.5kW | |
| Exhaust Cabinet Air Supply Volume | 3600m³/h | |
| Hot Air Temperature Control Range | ||
| Power Supply | Three-phase five-wire | 18kW,380V |
| Air Supply | Clean compressed air | >0.50 |
| Compressed air consumption | 0.6m³/min | |
| Steam | Steam pressure | >0.6MPa |
| Steam consumption | 80kg/h | |
| Electric heating power | 2kW | |
SINOPED specializes in the research, development, production, and sales of the pharmaceutical manufacturing equipment, including packaging machinery, mixing systems, filling equipment, API manufacturing machinery, and cleanroom solutions. Our comprehensive product range is widely applied in industries such as pharmaceuticals, biopharmaceuticals, and health supplements, supporting efficient and reliable production processes.
